Oh I don’t disagree that things are and have evolved. Its just when I think about the people who invented it all, I feel they deserve more respect than we are able to give them. I actually enjoy what it has become, but something inside just says they deserve the blues label all for themselves. I realize its a semantics thing in the end, I just wish what it has become had a different label so what they did isn’t just lumped in with everything else. But then that might cause their talent to become even more obscured, so who knows…
2 Likes
I think the bluesmen of first half of the 20th century would appreciate their music becoming the foundation of rockabilly, rock, blues rock etc. I’ve played blues and I’ve had the blues. In fact right now “the man” is doing a number on what I can buy for a dollar, I’m genuinely feeling oppressed so I’m going to write a song about it
. I’m not discounting the real pain, read Bobby Whitlock’s book to see what it was like even in the 50’s.
1 Like
Cantabile Performer© Organ→Leslie Combo Racks
I’m making this post at the request of Corky as a related sub topic in the ever growing & popular Organ thread he started. Many Thanks for the invitation.
While looking into the way I used Organ VST’s to try to improve my B5 experience live I ended up creating a new line of combo racks with input from Corky Robinson of our forum to use with various organ VST’s and the IK Leslie. It began as a way to gather Corky’s patches from both the IK Leslie and various organ plugins that had less effective rotary speaker simulations into monolithic form so they could be shared more easily and retain the original settings used when creating the combination patches. From there it spread to scores of test racks and the inclusion of the factory presets racks idea and ended with what I hope are new and helpful additions to Cantabile. The combo racks posted here were made for popular VST draw-bar organ plugins plus the IK T-Racks Leslie plugin and are internally routed in the same rack. The combination of the settings from the 2 plugins are saved as discreet selected state behaviors data and in some cases entire bank data to the rack file itself. This allows the combinations of plugins to have a single name for patch combinations and preset wiring to more easily manage combination plugin patches like this. All preset data &settings are held captive in a shareable rack. All that should be required is that you have the same VST 2.4 & 3 plugins installed in your Cantabile setup. You just load it in a song, route it and play if the those conditions are met.The factory patches from each organ VST are loaded into the state presets available in the hamburger menu at song level and locked to preserve the original & with the IK Leslie bypassed, you have to add the IK Leslie yourself in a newly created preset state or by editing a state where it is not yet used. A large helping feature on this rack are the custom buttons on the rack that launch different editing procedures using batch command bindings lists. Using these buttons & programming steps you can cut down on the multiple clicks involved in setting up a workspace to edit something like this and also the chore of saving it and cleaning up the view when done.
The concept of these factory preset racks offered here was to create a draw bar organ workstation where you could use the different vendors factory presets as starting points for your own creations and then save the work as a new preset state. While you can edit the factory presets states provided I recommend you select the preset closest to what you want and create a new state to edit it in so you can preserve the original factory presets. When you first load the rack the factory presets will be Organ VST only with the IK Leslie bypassed. You can add it in during an editing session if you want to. The swell pedal will also be set to zero to prevent sonic surprises so you need to route an expression pedal to the rack and turn it up to get the whole idea. The PDF instructions and the video tutorial should give more details and help you get started with the how to of it. There is also another series of racks coming soon that are built similar to this way and have Doug (Corky) Robinson’s collected presets he crafted for these combo style racks, both with the IK Leslie and without. A separate instruction PDF & tutorial video will accompany those as well. Below you’ll find the instructions PDF along with a video walk through & instructions. Racks that will be released are for
- IK Multimedia Hammond B-3X
- Acoustic Samples B5 & IK Multimedia T-racks Leslie
- GSI VB3 II & IK Multimedia T-racks Leslie
- GSI VB3 1.4 & & IK Multimedia T-racks Leslie
- GG Audio Blue3 & & IK Multimedia T-racks Leslie
Note that the B-3X didn’t need the addition of the IK T-Racks Leslie because it has a comparable one built in.
Combo Organ racks PDF tutorial
Factory Combo Rack Tutorial.zip (752.6 KB)

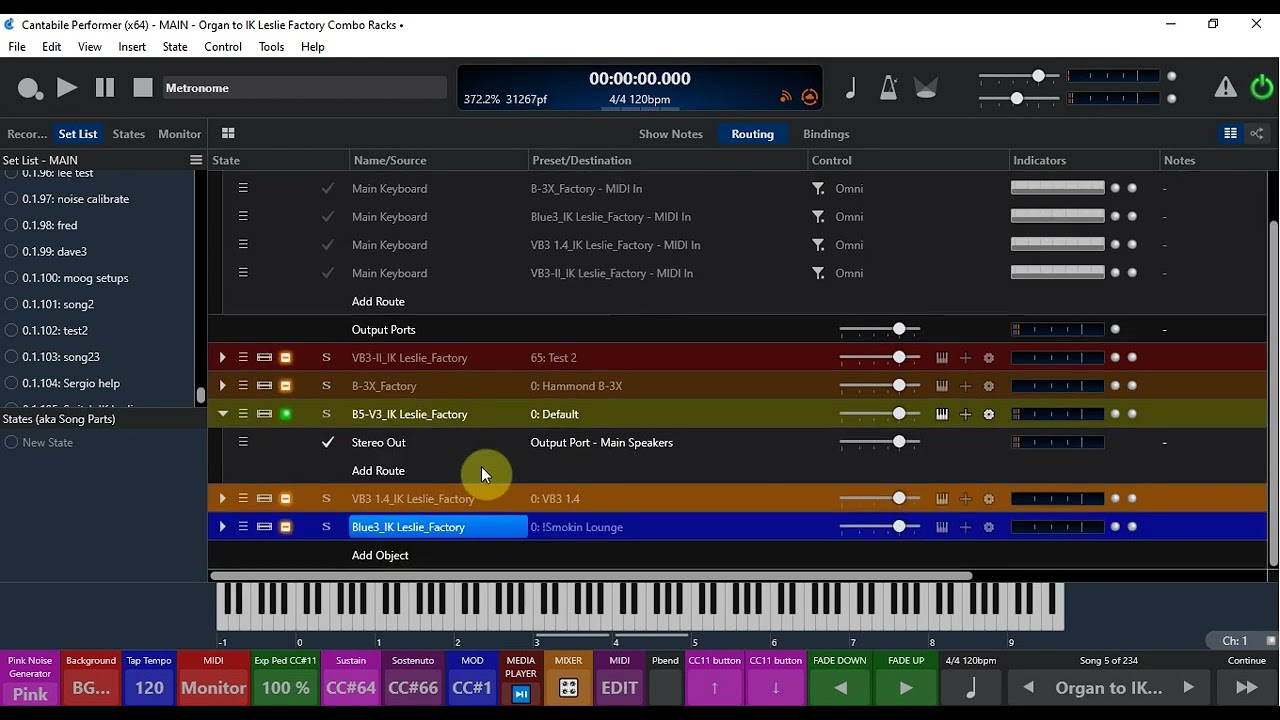

Combo Organ racks walk through video
More to come on Corky’s Organ Tips & Tweaks Page very soon.
Enjoy!!
Dave
10 Likes
Wow - this is fantastic! I can’t wait.
I have been working on a rack for VB3-II and IK Leslie, with a button/switch between internal GSI rotary and IKM Leslie, but your racks have so much more!!
I really appreciate the amount of effort that must have gone into creating these racks - thank you!!!
I think there will be much for me to learn by just examining how you accomplished some of the features.
Cheers - David
3 Likes
There is much more to come !!
3 Likes
Wow, what a fantastic idea to have Corky’s super sounds bundled by our rack grandmaster - kudos!
As you would expect, the rack and the accompanying video is almost an object lesson in rack building (even independent of Hammonds). I’m really excited to see what else is to come.
What comes to mind about the separation of organ and Leslie: this of course opens up the possibility of placing an overdrive effect between organ and Leslie (I’m currently experimenting with the Fabfilter Saturn 2 multiband distortion plugin).
Exactly the same way a parallel path Leslie / Marshal amp can be built (I guess that’s how Don Airey did it with Purple). Then it even makes sense to use B3-X and IKM Leslie at the same time.
In any case, many thanks to you for the great work,
many greetings, Volker
4 Likes
Glad to hear that, prof. Corky and Prof. Dave
Hey @Dave,
Dude you are awesome! I love your video. I like that everything is easy to view and you don’t mess it up by showing other things we don’t need to see. Your voice is clear and you stick to the point. I wish others would take note of your methods when they create videos.
Thank you very much for all the time you have invested in programming and the video demonstration. I can’t wait to go to work on it. Keep up the good work.
Al
VST Organ-IK Leslie Combo Factory Preset Racks
Hi All,
Thanks for the encouragement and comments I appreciate it.
. This post will hold the racks, I packaged all of them in one zip file, so use what is useful to you and ignore the rest. Like all things there may and likely will be some hiccups on some systems and to be honest a part of this project is to test just how portable are the racks regarding usability. That all said here are the racks described in the previous post. If you need help, PM me or Corky and we’ll try to assist. Stay tuned for the coming contributions from Corky, he made some wonderful patches that really show what can be done with these combinations of plugins.
As described in the previous post these racks are the factory patches for each organ brand and has the IK Leslie added to the 4 organs for more sonic choices if you prefer it to the built in rotary on these models. For the B5 combo rack you B5 version 3 and UVI workstation 3.13 for it to work.
Organ_IK Leslie Combo Factory Racks_2_14_2022.zip (1.4 MB)
Enjoy!!
Dave
UPDATE
I assumed that users would have both the organ and IK Leslie plugin when putting this together. As a result it would not make any sound when just the organ plugin was present. The racks have been updated & re-posted here so that even if you don’t have the IK Leslie you can still use the rack for your standalone presets & to play the factory patches.
4 Likes
I did get the B-3X with the full Leslie combo pack (which includes both the Amplitube-5 and the TR-Rack Leslies). I am studying your other racks that use a “Combo Rack Routing” binding to see if that holds the key to switching among the Leslie offerings in those plugins.
This is already a fantastically useful tool for me!
Thanks!
Terry
1 Like
Terry
Even though IK says there is no difference in all the Leslies, I can tell the difference between the Amplitube and the T-Racks version. I prefer the Amplitube, but the preset users wanted the T-Racks version, because of the size and cost of Amplitube.
2 Likes
PRESET MANIA HAS RETURNED!
During my recent reply about using racks for all my presets, I put a lot of thought into how this would work. I could post presets for the 5 Hammond plugins, within racks, and merely update the racks when new presets are available. I had no idea whether it would work, and would there be problems when updated plugins were available. To solve this, I needed a wizard to help me work things out. So….I contacted our resident wizard, Dave Dore. He took on the task, and worked some real magic I wasn’t expecting. He was way ahead of where I was going. He not only worked on the racks, but made them faster, and easy to use. There is now an easy way for the user to use the presets. Most everything you need is in the bindings he made, and you can start using the presets immediately without importing an IK Leslie in your rack, if you use it.
There are 2 sets of identical name presets in the racks. The upper set is just the plugin with its own Leslie. The lower set is the plugin using the IK Leslie. The 2 sets are defined with their own color. The B-3X has only one set of presets……after all, it has an IK Leslie built in.
Whenever I post future presets, the racks will be updated, and I will post them with the changes I made. All the user will have to do is download the zip file relative to the preferred plugin, unzip, and send it to your Racks folder in Cantabile and overwrite the older one. Pull up the rack, add a midi route in, and audio out. It’s ready to go. I have updated some of the older presets in these new racks, and will continue to do so as time passes.
The main thing users will have to do is meet the plugin version listed in the posts. If I update a plugin, I will announce it with the next post. One other thing….to successfully use the presets as designed, it is necessary to link an expression pedal, a rotary knob, or a slider to the GUI swell pedal or slider (in some plugs). All presets have been updated and newly edited.
We tested the racks many times, and feel confident they will perform perfectly. If you need help with this, or have a problem within our racks, feel free to contact Dave Dore, or myself in the organ thread, or PM us. We both are usually online, Dave is an early riser, and I am a night owl.
As Dave said, we were going for a Hammond Workstation, and I believe we achieved it. I created 6 new presets for this release, and have many more in waiting. I meticulously went through all 126 organ plugin presets, and all 56 IK Leslie presets, previously posted, to add improvement, and adjustment. I will post our fabulous racks very soon. Stay tuned, and Enjoy!
Corky
10 Likes
Sometimes I feel like my timing is just perfect!!! This is one of those times!
Terry
1 Like
As the racks are posted, it is essential to remember to bind your expression pedal, or rotary knob/slider, to the GUI pedal or slider. I am now using the FX in B-3X and B5, so there will be a little more CPU load. I tested these on a Win 7 machine with 8GB Ram, and the highest I got was about 45%. Many of the presets are loud at full pedal. I suggest you keep your eye on output clipping, and adjust volume at song level to maintain the integrity of the preset.
Remember, these are starting points. Our ears hear differently, and my rig may be a little different from yours, so feel free to adjust to your liking. At a gig, I always adjust to the room.
B5 users need to use the newest version of the UVI Workstation. It will crash if you don’t.
IK Leslie T-Racks version is 5.8.
Blue3 - VST3
IK Leslie - VST3
VB3 1.4 - VST 2
VB3-II - VST2
B5 - VST2
B-3X - VST2
I will still post notes for each preset. Sometimes, I will give a detailed instruction on how to use the preset. At other times, just some info about the artist or band. I will archive the older presets in a PDF file included with the presets. Below are the info notes for the 6 new presets. There are 2 sets of presets in every rack (with exception to B-3X rack. Only 1 set). The 1st set of racks are for the the original plugin with internal Leslie. The 2nd set of presets in the rack is set up to bypass original Leslie, and route to the IK Leslie presets relative to the current preset. Some of the organ settings will be different with IK . The 2 sets of presets within the rack are separated by colors
PRESET MANIA #15 – DANNY FEDERICI
Danny Federici was an original member of the E Street Band. With Springsteen at the helm, he kept the Jersey Shore Sound in check throughout decades of Albums and Concerts. His Hammond always sounded like a carnival, bright and jingly. He also played a keyboard glockenspiel to enhance the jingly sound Springsteen was known for. To add even more, he played an Accordion on a few tracks. He died at 58 of melanoma. Band members said Danny didn’t know chords, never read music, and couldn’t tell you what key he was playing in. Bruce would start a song, and Danny just knew where it sounded on a keyboard.
PRESET MANIA #16 –STEPPENWOLF – BORN TO BE WILD
There are several different stories about the slow ramp-up and slow ramp-down Leslie Drum sound. I tend to believe the recording engineer, who said the Leslie horn was blown and non-useable. Recording time was short, so they wired the horn wires into the drum, and had all the frequencies running through the drum. The slow drum had a badly stretched belt that had to catch a grip to the motor when it started and slowed down. No doubt, Goldy McJohn, organist with Steppenwolf, was extremely rough on the Leslie. But he created a sound that no one else could copy. I tried my best to get that Goldy sound within the plugs, and I think I got as close as the plugs would allow.
During the verse, Goldy would vamp on E7 with Leslie at full speed. As they went into the chorus, Leslie would be switched to slow, and as it ramped down, the solo/verse would kick in with a fast Leslie.
PRESET MANIA #17 – FOCUS - “SYLVIA”
The wild-eyed Organist with Focus, Thijs Van Leer, formed the 1st successful Dutch Progressive Rock Band. “Hocus Pocus” was their biggest hit. He is still performing today.
PRESET MANIA #18 – FRUMPY – HOW THE GIPSY WAS WON
French born Jean-Jacques Kravetz was the organist with Frumpy, a German Progressive band, in the early 1970’s.
PRESET MANIA #19 & 20 – SPOOKY TOOTH – WAITING FOR THE WIND
There were two keyboardists in Spooky Tooth. The most notable was the very successful Gary Wright. He is playing organ on this song. Another notable from this band is Guitarist Mick Jones, who formed Foreigner.
If you listen closely, after the intro, you will hear a quick edit from organ 1 part, to organ 2 parts. Either there was a different organ recorded in the 2nd part, or they modded the original organ. The sounds were not even close. So, to make this happen in Cantabile, I made two presets, and you can switch preset states from 1st organ to the 2nd organ. No tape splicing required.
VB3 1.4 x64 Corky Racks.zip (321.6 KB)
VB3-II Corky Racks.zip (302.7 KB) FIXED
Blue3 Corky Racks.zip (311.0 KB)
AS B5 Corky Racks.zip (414.7 KB)
B-3X Corky Racks.zip (318.3 KB)
Just unzip, and drop into your Cantabile Racks folder. If you encounter any problems, contact Dave Dore, or myself. We are basically at 1.0 version of these racks, and expect a few hiccups.
Enjoy!
Corky
7 Likes
Thanks for your generosity Corky, having worked on this latest collection with you I have to say that the presets are wonderful sounding. I also got to hear the difference between each organ. I really got to know all the brands this way. I didn’t dig under the hood of your tone building but I will just to see how you got some of the sounds, Wow …
Dave
3 Likes
Thanks for making my idea into a reality! You are truly amazing!!
Hi @dave_dore,
I’ve been examining your rack and learning a lot, but I saw you using Triggers and didn’t understand the function. I looked thru the documentation, but couldn’t find much. In the forum there was discussion about how triggers were merged with Bindings after C2.
Would mind explaining what Triggers are in Cantabile? For example, 'On Specific Trigger" #117 - is this responding to a key press? What are ‘Indexed Triggers’?
Thank you,
- David
1 Like
Hi David,
I’ll PM you regarding this, thanks for your interest.
Dave
Oh, I am also very curious about triggers, can you share some info, maybe in a separate thread?
1 Like
