Conditional CC Filter

1

Here is my use case.

I have a linked rack with Cherry Audio Blue3 (organ) connected to Universal Audio Waterfall Rotary. I need to conditionally suppress CC64 from the Waterfall Rotary, and have that condition established and passed from the song binding.

So right now, within each song that uses the Blue3/Waterfall linked rack, I have a binding that sets a value for CC 72, either 1 or 127. Based on the CC72 value, the Blue3/Waterfall linked rack should either allow or suppress CC64 from being processed by Waterfall Rotary.

My problem is that I don’t know how to setup a conditional filter in the Blue3/Waterfall rack. Can anyone provide a solution, OR an alternative approach to passing and executing a conditional CC filter in a linked rack?

2

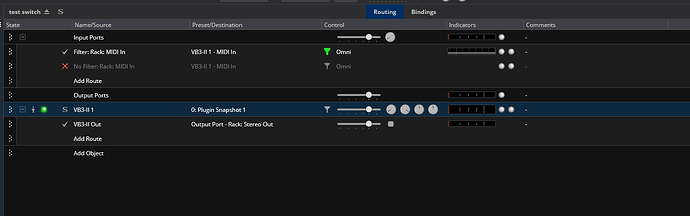

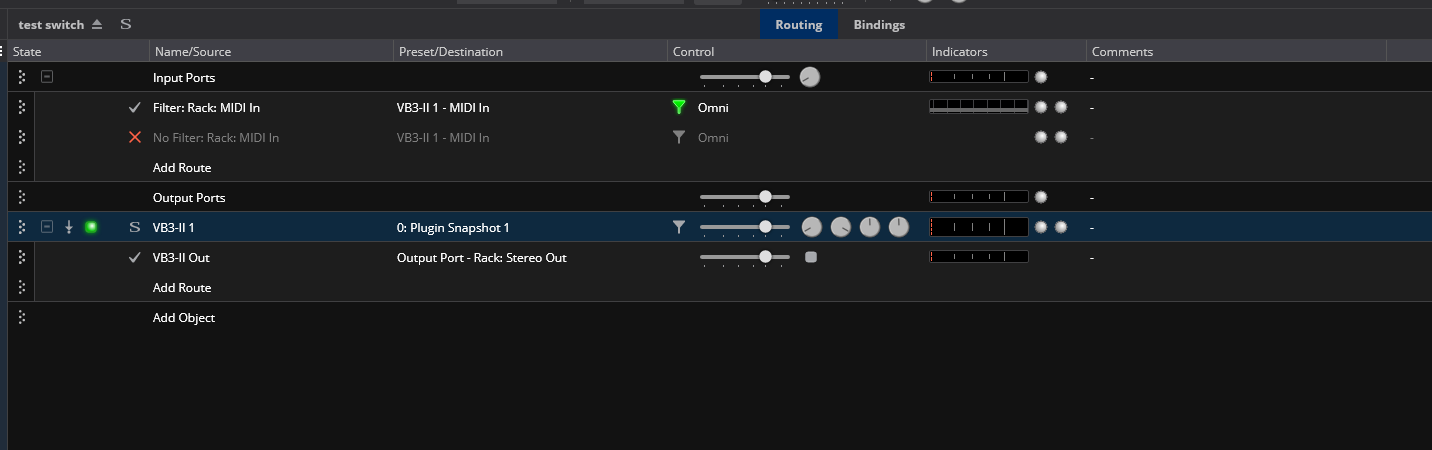

If I understand the problem you would need to use a second input route inside the rack in the song that is not filtered. Then you could rename the 2 routes

image1432×450 22.3 KB

and use some bindings to switch between them.

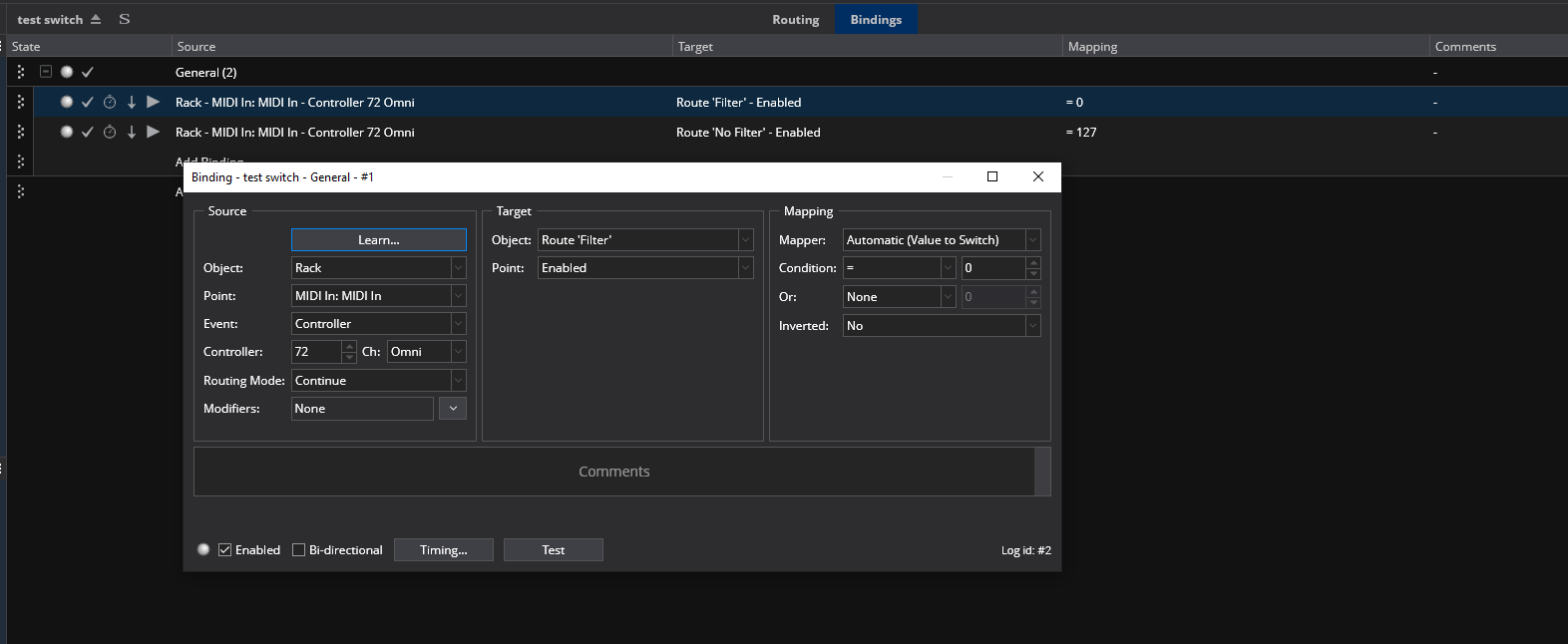

image1572×646 28.4 KB

The example above shows the basic idea. It assumes the CC72 switch is a toggle or slider.

1 Like
3

As always, thank you Dave for sharing your knowledge and expertise with Cantabile. You provided an elegant and effective solution to my problem. We are very lucky to have experts and mentors in this community like Dave that are so willing to help us out!
